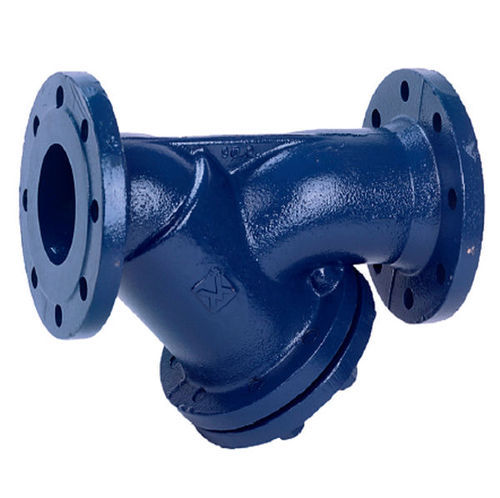

‘Y’ Type strainers are devices for mechanically removing unwanted solids from liquids, gas or steam lines by means of a perforated or wire mesh straining element. Y-strainers are very cost effective straining solutions in many applications, where the amount of material to be removed from the flow is relatively small, resulting in long intervals between screen cleanings. The strainer screen is manually cleaned by shutting down the line and removing the strainer cap.
MOC : SS316L, SS316, SS304, SS304L, CS.
MOC Filter Media : SS mesh with supporting SS perforated plate
Operating Pressure : Upto 6000psi, 6 bar
Operating Temperature: : Upto 200°C
Filter Rating : 40 to 2000 microns
Type of Element : Wiremesh Wrap Round
Seal Material : Silicon/EPDM
End Connection Type : Flanged, Threaded type
Low weight
Compact size
Bottom plug for waste disposal
Low filtration area
Made out of Forged Tee and Flanges
Reusable
Easy cleaning without interrupting the process.
Various perforations, mesh or perforation mesh combinations are available to meet your process requirements.
Can be installed either in a horizontal or vertical position.
Chemical processing
Petroleum, oil & Petrochemical industries
Power generation
Marine
Food & Pharma industries
Water applications
Steam applications
Air or natural gas applications
