PP molded opaque and transparent filter housings that are made using polypropylene. These housings are known for its chemical resistance. The housing can accommodate single cartridge of lengths of 125, 250 or 500 mm. They come in two sizes-standard and jumbo filter housing-depending upon the OD of the filter cartridge. They can be used in place of costly stainless steel filter housings.
|
|
Filter Cartridge Housing |

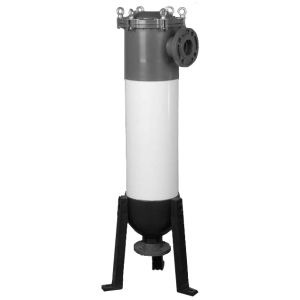

Filter Bag Housing |
|
MOC |
Polypropylene Bowl- Blue Reinforced material(Opaque) or clear (transparent) |
Polypropylene Bowl- Blue Reinforced material(Opaque) or clear (transparent) |
|
Bolt & Nut |
SUS 316L |
SUS 316L |
|
Length of filter element |
5"/ 10"/ 20" |
4”x20”, 7”x32” |
|
Inlet/Outlet |
¾ " to 1.5" BSP |
¾ " to 1.5" BSP |
|
O-ring Connections |
Silicon, EPDM |
Silicon, EPDM |
|
Vent/Drain |
Pressure relief button |
Pressure relief button |
|
Max. Operating Temperature |
50 ° C |
50 ° C |
|
Max. Operating pressure |
3.5 bar |
3.5 bar |
|
Housing color |
Blue Bowl/ Black cap (Opaque) Transparent bowl/ black cap (Transparent) |
Blue Bowl/ Black cap (Opaque) Transparent bowl/ black cap (Transparent) |
|
Configuration of element |
Double open end |
Bag type design |
Low pressure drop design.
High flow rates.
Positive sealing.
Easy to install as well as maintain.
Standard & big blue.
Excellent chemical compatibility.
Process water
Process fluids
Reverse osmosis pre-filter
Beverages
Plating solutions
Fine chemicals, inks & dyes
Coolants
Cleaning fluids
Vegetable oils
Edible oils
Polymers
