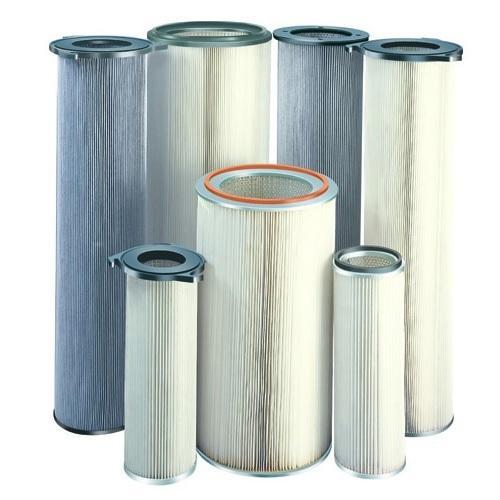

Pleated Dust Collection Cartridge

We offer a quality range of Pleated Dust Collection Cartridges, which is manufactured using 100% pure graded polyester with different coating as per the application requirements of our clients. These are designed in a manner to build the dust collection cartridges in equipment; whereas the pleated bags are used for existing dust collector in place of conventional dust collection bags, without any modifications.

We make these cartridges using polyester media of high tenacity filament without using any binding agent. Manufactured using thermal tight bonded media these cartridges are washable and provides excellent pleats and known for their stable structure, fine dust release and good particle penetration resistance. Further, the filter media is pleated in diverse pleated depths and height to accommodate preferred filtration area.

  • Length                                                         : 300mm, 500mm, 606mm, 1000mm, 1400mm, 2000mm

  • Standard Diameter                                    : 150mm, 225mm, 325mm

  • Filter Media                                                : Spun Bonded Polyester media

  • Coating                                                        : PTFE, Aluminium

  • Top Cap                                                       : Aluminium 3 Lug, MS plate

  • End Cap                                                       : EPDM, Natural Rubber, polyurethane and metal caps



  • High filtration area up to 20 m2

  • Universal fixing arrangements

  • Open pleat spacing

  • Low consumption of compressed air (for cleaning)

  • High efficiency due to surface filtration

  • Very high air to cloth ratio

  • Very high filtration efficiency

  • Hard finish material gives better pleat ability.

  • Pharmaceuticals

  • Steel & Power

  • Powder coating

  • Shoot Blasting

  • Cement

  • Chemicals

  • Metals &Minerals

  • Paints & Pigment
