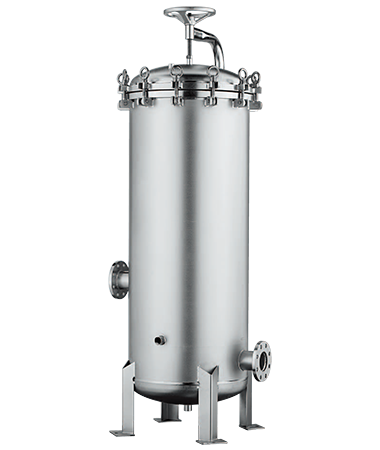

Stainless steel multi-cartridge filter housings meet general purpose industrial and commercial filtration needs. All wetted surfaces are constructed of SS 304/ SS 316/ SS 316 L and are mirror polished, providing excellent corrosion resistance. This multi-cartridge housing can consist of 3, 5, 10 or up to 500 cartridges to give the desired flow rate as per customer requirement. The housing is compatible with 10" to 40" filter elements. The housing can support both Double Open End (DOE) and Code-7 type cartridges. The design of the housing provides for positive seal with the filters thereby preventing fluid by pass.
|
MOC |
SS304/ SS304 L/ SS316/ SS316 L |
|
Shell dia |
Changes as per the no. of cartridges |
|
Dia of cartridge |
2”, 2.5”, 4”, 6” & 8” |
|
Length of cartridge |
10"/ 20"/ 30"/ 40"/ 50”/ 60” & customized |
|
Cartridge type |
DOE, Code 7, Code 3 |
|
Inlet/ Outlet |
1/2" , 1", 1.5" BSP Triclover/ Flange/ coupling |
|
Vent/Drain |
1/4" BSP |
|
Finish |
Mirror Polish/Matte Finish |
|
O-ring/Gasket |
Silicon/ EPDM/ Viton/Neoprene/PTFE/Buna-N |
|
Maximum Operating Pressure |
10 Bar at 121°C |
Stainless steel construction provides excellent corrosion protection for rugged, long-lasting service.
Housing drain allows full drainage of chambers for optimized filter change out.
Provision for air venting before start-up for more efficient filter operation.
Allows for use of both DOE or SOE cartridges.
Mirror polish finish eliminates possible contamination which could leach into the process chemicals.
ASME Code stamp available
Duplex/ Triplex/ Jacketed cartridge filter unit designs are available
Chemicals & Petrochemicals
Food and Beverages
Health and Pharmaceuticals
Industrial Processes
Paints & Coatings
Industrial Water treatment
Electronics
Cosmetics
